ACC GX-Series

Okamoto Precision surface grinding machine

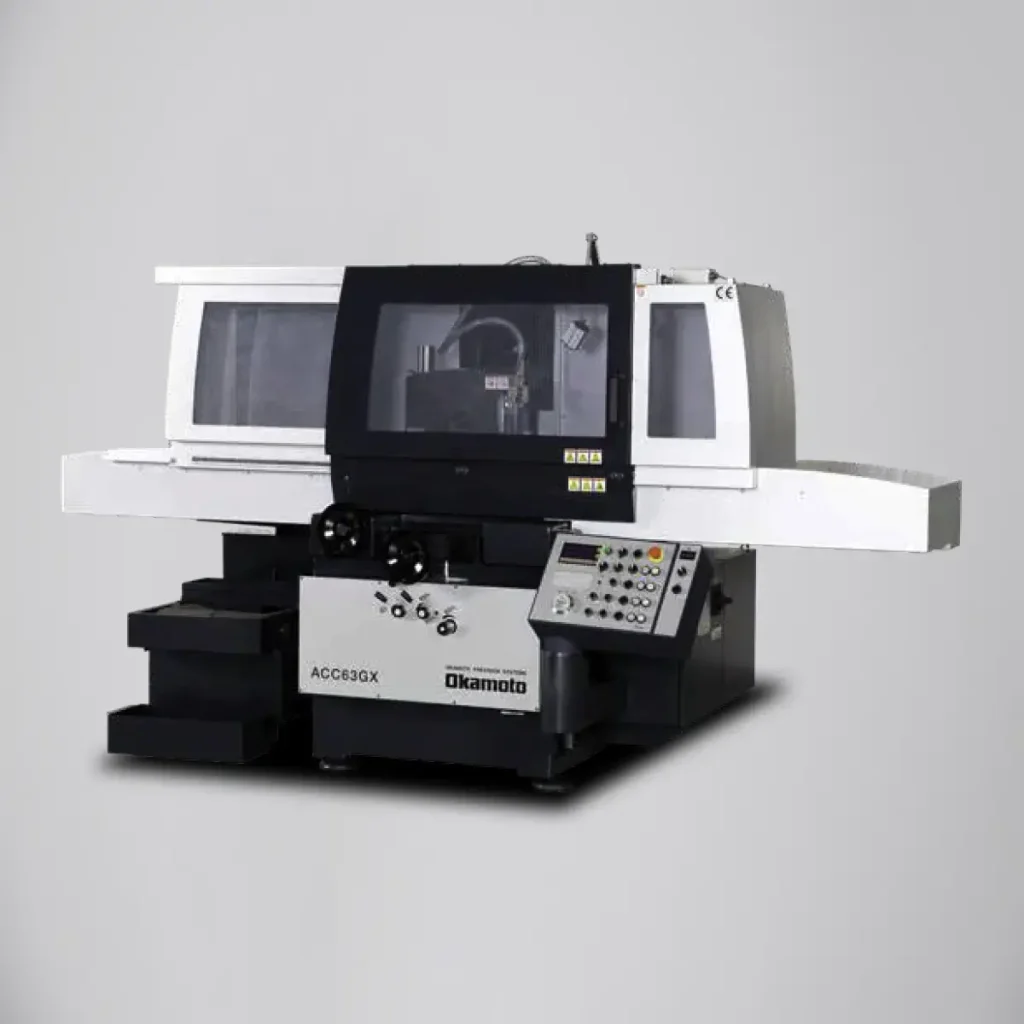

The GX series, Okamoto’s high-quality standard precision grinding machine for flat surfaces with a PLC-Controller

With a grinding length of 500 – 1000 mm and a cross travel of 200 – 500 mm the Okamoto GX Series is ideally suited for the toolroom. It features a high level of standard equipment to ensure easy handling, quick and precise small part production. The robust cast iron construction and double-V slideways in both table and crossfeed ensure long term precision.

Hydraulic surface grinder with automatic reversing saddle feed
Moving saddle design
Double-V slideways longitudinal and cross
PLC controller with proven reliability
2 step downfeed for rough and fine grinding.
Automatic spark out with automatic wheel head retract for parking

Technical Specifications

Model:

Table Movements (longitudinal/cross), mm	650 x 230	750 x 340	750 x 440	750 x 540	950 x 440	1150 x 540
Standard Chuck size (L x W x H), mm	500 x 200 x 90	600 x 300 x 90	600 x 400 x 90	600 x 500 x 90	800 x 400 x 90	1000 x 500 x 90
Max. table load (incl. magnt.), kg	200	420	420	700	700	700
Grinding wheel - ø x width x bore, mm	ø 205 x 19 x ø 50.8	ø 355 x 38 x ø 127	ø 355 x 38 x ø 127	ø 355 x 38 x ø 127	ø 355 x 38 x ø 127	ø 355 x 38 x ø 127
Motors Wheel spindle (option), kW	1.5 ( 2.2/3.7)	3.7 (7.5)	3.7 (7.5)	3.7 (7.5)	3.7 (7.5)	3.7 (7.5)
Floor space L x W x H, mm	3080 x 1659 x 1840	3425 x 1931 x 1885	3425 x 2263 x 1840	3425 x 2506 x 2107	4295 x 2272 x 2150	4920 x 2520 x 2100
