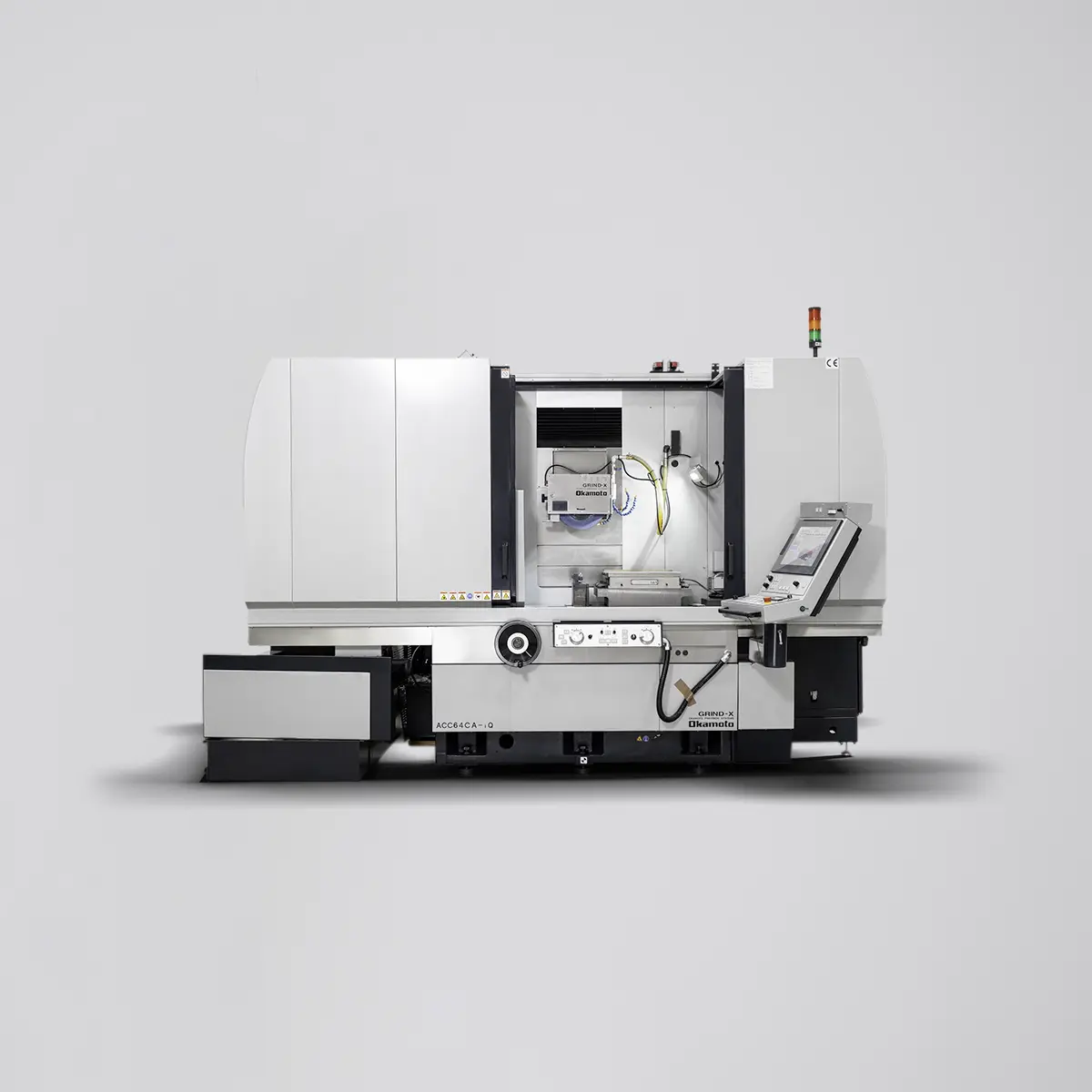

The CAiQ-Series, Okamoto’s high-quality precision grinding machine for flat surfaces and profiles with Okamoto Touch Screen Control
With a grinding length from 600 – 1000 mm and a cross travel from 400 – 600 mm the Okamoto ACC CAiQ-Series is suitable for toolroom and production grinding environments.
It features a high level of standard equipment to ensure easy handling, quick and precise medium and large batch part production.
The robust cast iron design and double-V slideways in the table ensure long term precision.
It features an easy to use touch screen graphical user interface for surface grinding, and other grinding patterns with 5 faces, including slot grinding.
Programmable in-cycle wheel dressing for straight wheels and facing wheels is standard.
ADDITIONAL EQUIPMENT
- Graphical wheel shape software for simple radius an V-shape
- ISO G-Code wheel dressing and grinding
- Okamoto-iCAM, CAD/CAM wheel profiling software
- Uneven slot grinding in 5 different patterns
- Combined grinding of up to 40 different faces
- Electro permanent magnetic chucks to match the machine size
- Wheel dressing options including rotary dressers
- Various coolant systems
Technical Specifications
| Table length x width mm | 605 x 400 |
| Table stroke length x width mm | 800 x 440 |
| Maximum distance grinding wheel - table mm | 22.5 - 522.5 |
| Standard Chuck size (L x W x H), mm | 600 x 400 x 90 |
| Table load incl. chuck kg | 1000 |
| Grinding wheel D x Width x d mm | Ø 355 x 38 x Ø 127 |
| Motors Grinding wheel spindle standard kW | 7.5 |
| Floor space L x W x H, mm | 3400 x 3285 x 2490 |
