ACC CHIQ-Series

Precision double column machine

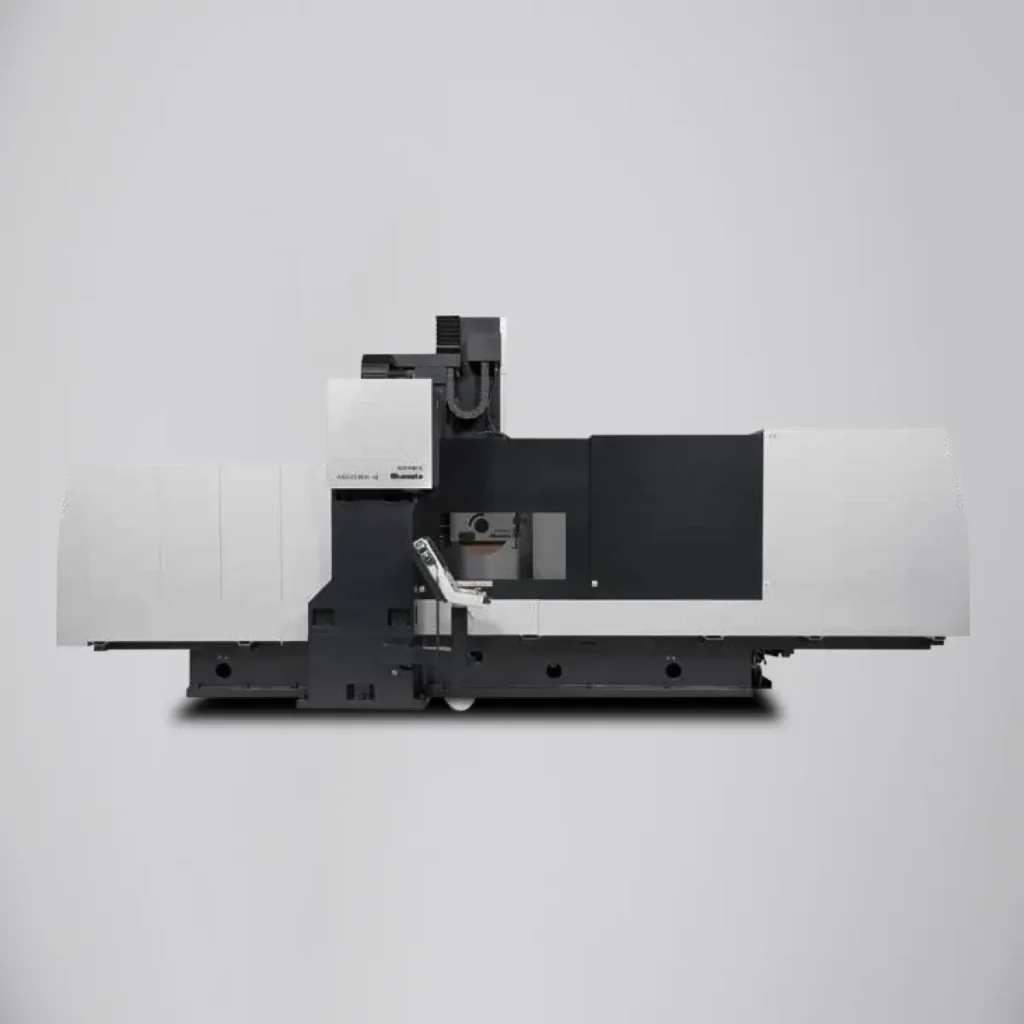

The ACC CHiQ-Series, Okamoto’s double collumn high-quality precision grinding machine with Okamoto iQ-Control for large components

The ACC-CHiQ series meets the very highest requirements in terms of precision to be found in the manufacture for parts in tool and mould construction, in hot runner technology and punching die construction. The cross slideways can be adjusted mechanically and can be realigned at any time as needed. In doing so, the CNC does not need to be compensated which in turn affords advantages in a higher surface quality and
smoothness.

Double column machine
PC control with touchscreen
Simple data input via symbols
Stable construction for the very highest
geometry requirements
Mechanically adjustable cross slideways

Technical Specifications

Model:

Typical Chuck size (L x W), mm	2000 x 800 or 2000 x 1000	2500 x 800 or 2500 x 1000	3500 x 800 or 3500 x 1000	4500 x 800 or 4500 x 1000
Pass width between columns, mm	1050	1050	1050	1050
Maximum axis travel (longitudinal x cross), mm	2250 x 910	2750 x 910	3750 x 910	4750 x 910
Maximum weight of table (Including chuck) kg	3200	3900	5500	6400
Grinding wheel Size (OD x W x ID), mm	Ø 510 x 50-100 x Ø 127	Ø 510 x 50-100 x Ø 127	Ø 510 x 50-100 x Ø 127	Ø 510 x 50-100 x Ø 127
Motor kW	22	22	22	30
Floor space L x W x H, mm	7470 x 3850 x 3550	7750 x 3850 x 3550	11490 x 3850 x 3550	14335 x 3850 x 3550
