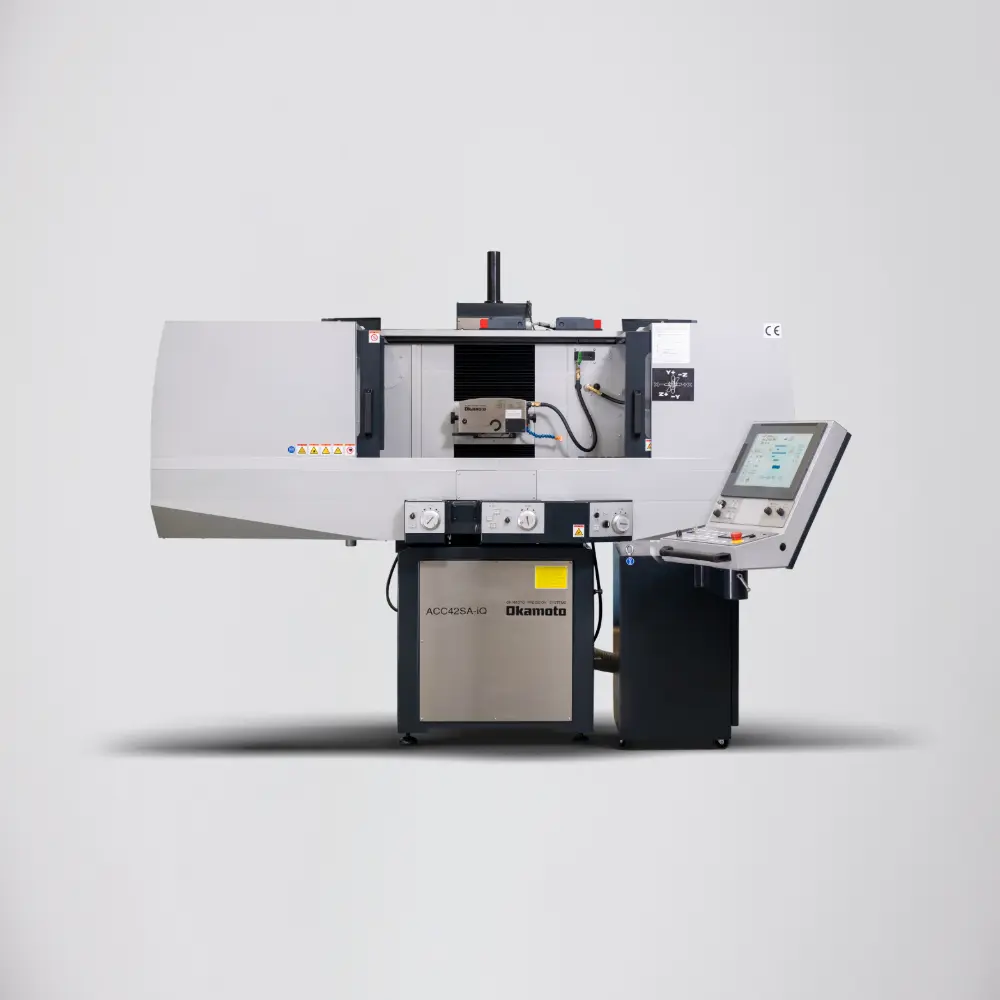

The ACC 42SAiQ, Okamoto’s toolroom sized precision CNC surface and profile grinding machine
Features an easy to use touch screen graphical user interface for surface grinding, and other grinding patterns with 5 faces, including slot grinding.
Programmable in-cycle wheel dressing for straight wheels and facing wheels is standard.
ADDITIONAL EQUIPMENT:
- Graphical wheel shape software for simple radius an V-shape
- ISO G-Code wheel dressing and grinding
- Okamoto-iCAM, CAD/CAM wheel profiling software
- Uneven slot grinding in 5 different patterns
- Combined grinding of up to 40 different faces
- Wheel dressing options including rotary dressers
- Workholding option including 400 x 200 mm Electro permanent magnetic chuck
- Various coolant systems
Technical Specifications
| Table working cap. (length x width) mm | 500 x 200 |
| Maximum travel (manual : longitudinal x cross) mm | 530 x 230 |
| Standard Chuck size, mm | 400 x 200 x 80 |
| Table load capacity (incl. chuck weight) kg | 120 |
| Grinding wheel Size OD x W x ID mm | ø 205 x 6 - 25 x ø 31,75 |
| Motors Grinding wheel spindle (reverse-ventilation) kW/P | 2,2 / 2 |
| Floor space L x W x H, mm | 2400 x 2150 x 2100 |
