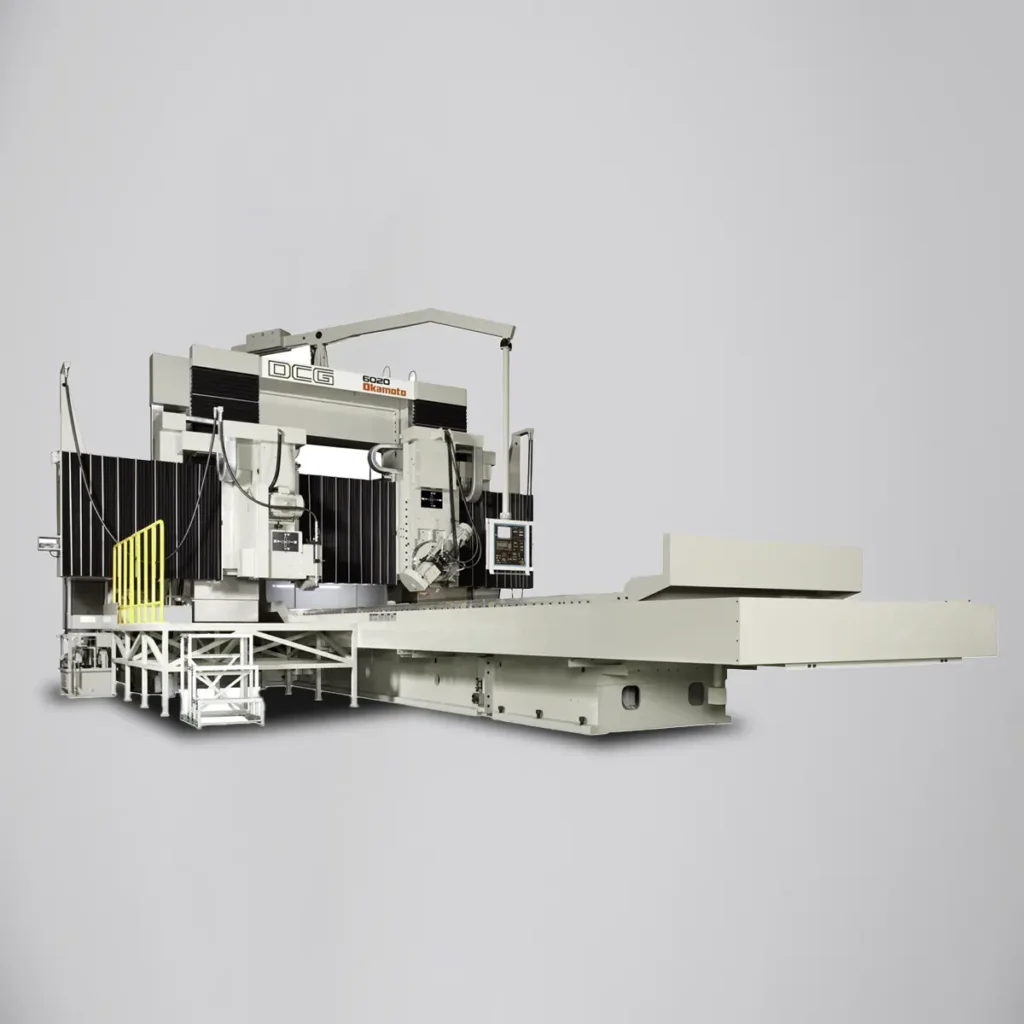

With a grinding length of 2m – 4m and a cross travel of 1.5m – 2m the Okamoto DCG-NC Series is ideally suited for both toolroom and production use. It features a high level of standard equipment to ensure easy handling, quick and precise part production. The robust cast iron construction and double-V table slideways together with gantry cross slide ensure long term precision. The intuitive operation of the controls simplifies usage and increases productivity considerably.
- Double column machine
- Max. grinding height 1.5m, 1.6m, and 1.8m depending on model size
- Robust construction for the very highest geometry requirements
- Precision surface processing
- Conversation software
Technical Specifications
| Table Working Area W x L | 320 × 4010 mm to 1980 × 10,010 mm |
| Grinding Wheel | 610 × 100 × 305 mm |
| Grinding Wheel Spindle Power | 15 kW |
| Floor Space (L × W × H) | 13.4 × 7.3 × 6.1 m to 2.13 × 0.71 × 6.7 m |
